High-powered brushless systems are not for beginners.  High power, high DC voltages and high amperages used in these systems can result in serious damage or injury if not used properly.

APD controllers offer RC pilots new levels of power for giant-scale applications.

Flexible software offers unique capabilities, such as propeller centering, to scale modellers.

85V / 400 Amps

UHV 20S

120V / 300 Amps

UHV 28S

Controller
Peak Power (W)
38,000
45,000
Cont. Amps*
400
300
Burst Amps**
450
400
Volts
85
120
Max LiPo Cells
20S
28S
Weight***
1,069g
1,069g
Dim(mm)
180 × 100 × 28
180 × 100 × 28
Datasheet

60V / 240 Amps

HVPRO 14S

75V / 100 Amps

HVPRO 16S

85V / 450 Amps

HVPRO 20S

100V / 200 Amps

HVPRO 24S

Controller
Peak Power (W)
21,600
40,000
37,000
30,000
Cont. Amps*
240
400
300
200
Burst Amps**
360
600
450
300
Volts
60
75
85
100
Max LiPo Cells
14S
16S
20S
24S
Weight***
155g
220g
220g
220g
Dim(mm)
96 × 52 × 22
96 × 52 × 26
96 × 52 × 26
96 × 52 × 26
Datasheet

25V / 100 Amps

40 F3x



35V / 140 Amps

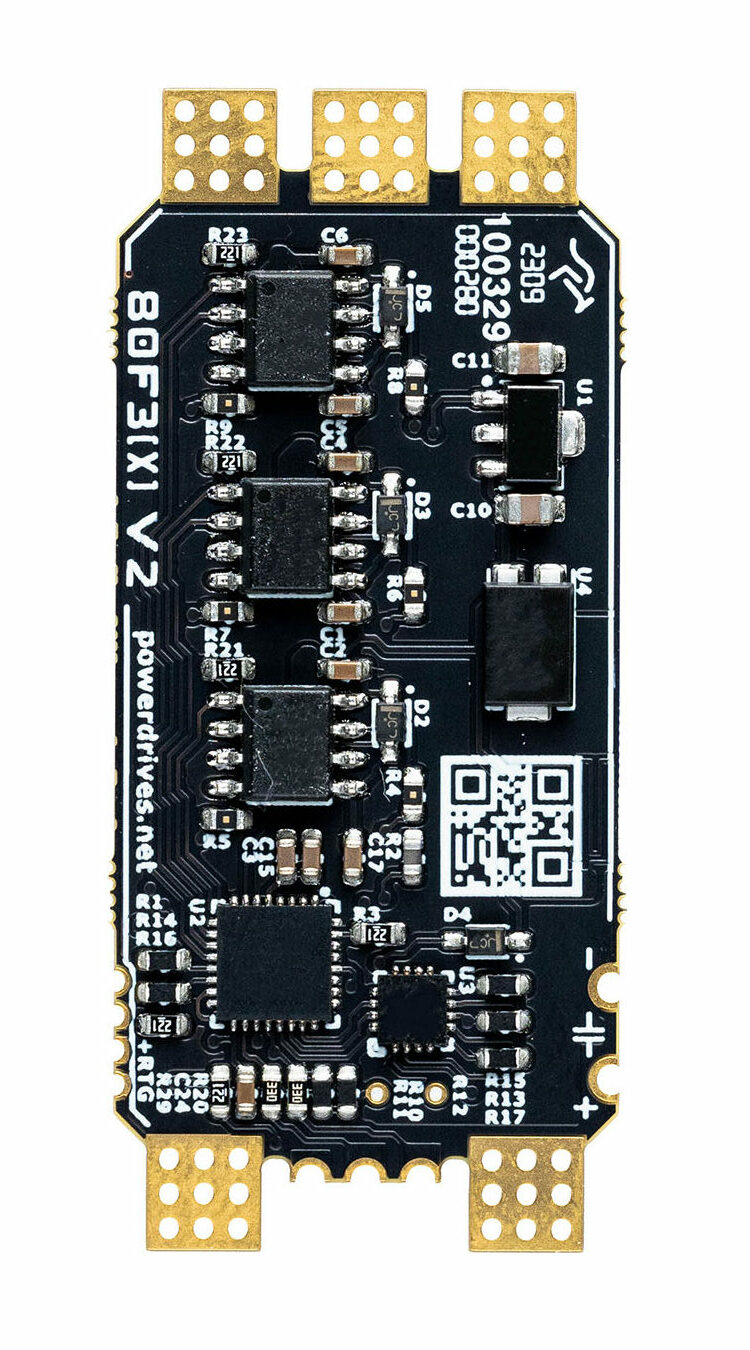

80 F3x



50V / 200 Amps

120F3x



60V / 300 Amps

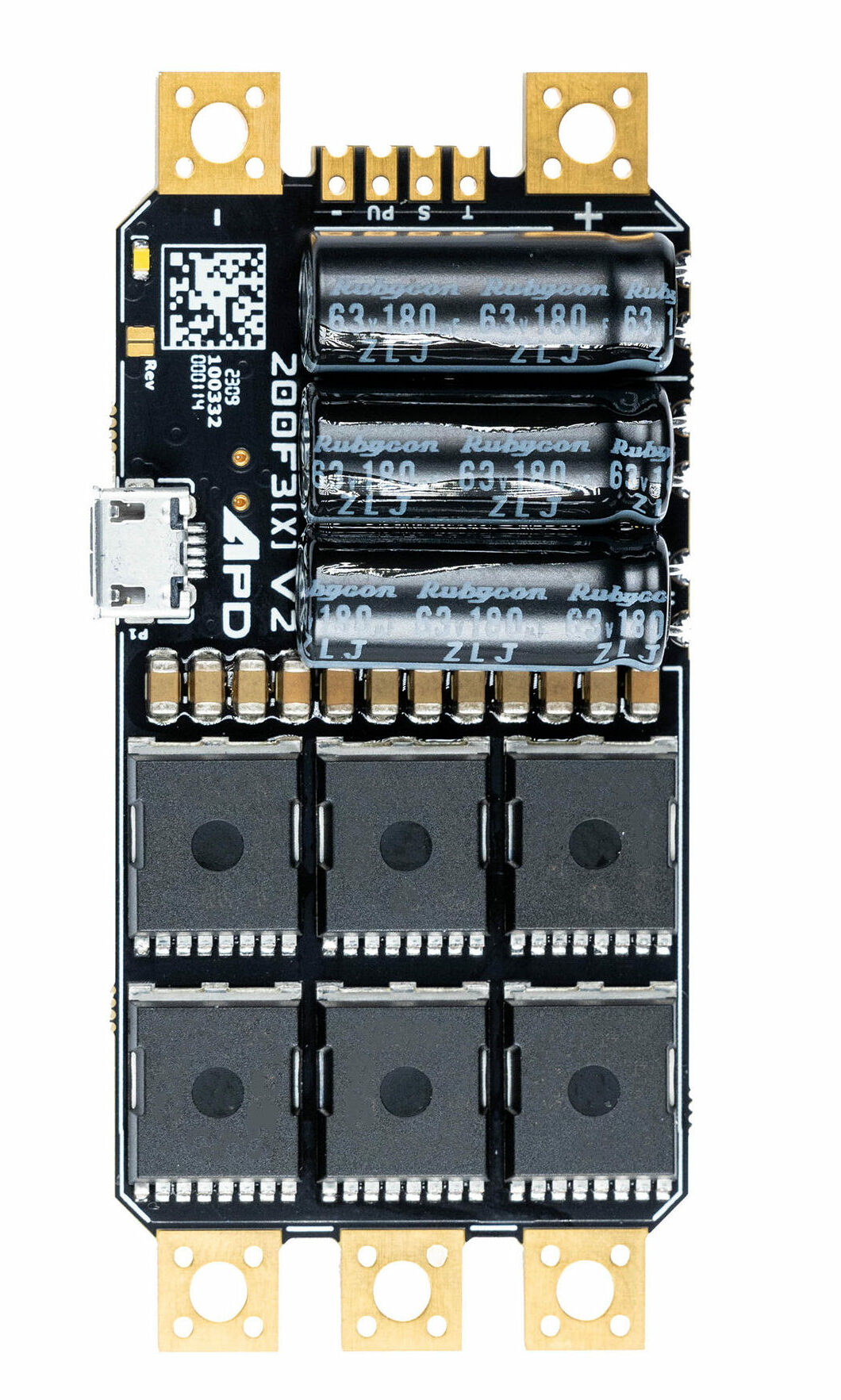

200F3x



Controller
Peak Power (W)
2,500
4,000
9,000
18,000
Cont. Amps*
40
80
120
200
Burst Amps**
100
140
200
300
Volts
25
35
50
60
Max LiPo Cells
6S
8S
12S
14S
Weight***
3g
10g
20g
36g
Dim(mm)
31 × 16 × 4
51 x 23 x 14
59 x 29 x 14
73 × 34 × 12
Datasheet

HIGH POWER BRUSHLESS SYSTEMS AND BATTERIES CAN CAUSE SERIOUS DAMAGE AND/OR INJURIES IF NOT USED PROPERLY.  USERS ACCEPT ALL RESPONSIBILITY FOR THE SETUP, USAGE, AND POSSIBLE DAMAGES THAT MAY RESULT FROM THEIR PROJECT. THIS POWER SYSTEM IS NOT FOR BEGINNERS.

THESE VOLTAGES AND AMPERAGES CAN CAUSE SERIOUS BODILY HARM INCLUDING BURNS AND ELECTROCUTION.



Peak power ratings defined at 100% throttle, where bus current = phase current. Requires proper sizing of motor to load.

(*) Continuous amps defined as amperage sustainable for 180 seconds with adequate cooling to keep ESC at or below 115C

(**) Burst amps defined as amperage sustainable without damage to controller for a period of 5 (five) seconds.  Burst should not be encountered again until ESC has returned to normal temperature

(***) Weight refers solely to the circuit board and enclosure, if any.  Weight measured without any wires or connectors.

Specifications subject to change without notice.
