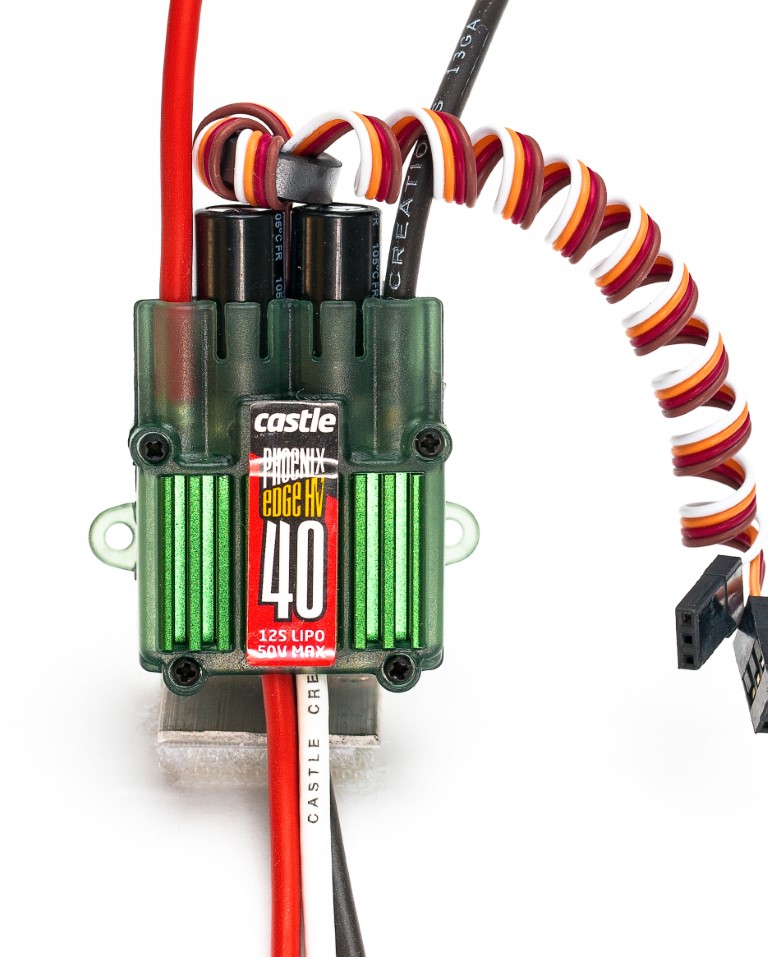

Edge HV 40 Amp Brushless ESC
Edge Lite 40 HV brushless motor controller
Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included) or the Castle Link App and a B-LINK Bluetooth Adapter, the Phoenix Edge offers unparalleled versatility.
Phoenix Edge Lite HV controllers offer all the amazing features and functionality as the regular HV series with a reduced size and weight.
ELECTRIC MOTORS AND CONTROLLERS CAN BE TRIGGERED INADVERTENTLY. KEEP AWAY FROM MOVING PARTS AT ALL TIMES.
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 3S LiPo MAX: 12S LiPo |
| Max Continuous Amperage at full throttle: | 40 amps* |
| Max Voltage: | 50.4V |
| BEC Voltage: | N/A |
| BEC Output: | N/A |
| Size: | Width: 1.7″ (43.4mm) Length: 1.8″ (46.3mm) Depth: 0.8″ (21.4mm) |
| Weight (w/wires): | 2.4 oz. (67.2g) 1.1 oz. (30.6g) without wires |
| Connectors: | N/A |
| Items Needed for Operation: |
|
| Product Use Statements: | N/A |
| Application Guidelines: | Helicopters and fixed wing |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. |
| Telemetry Link Capable: | Yes |
| Tech Notes: | Receiver voltage input range: 4.8-9v |
Additional information
$144.95
