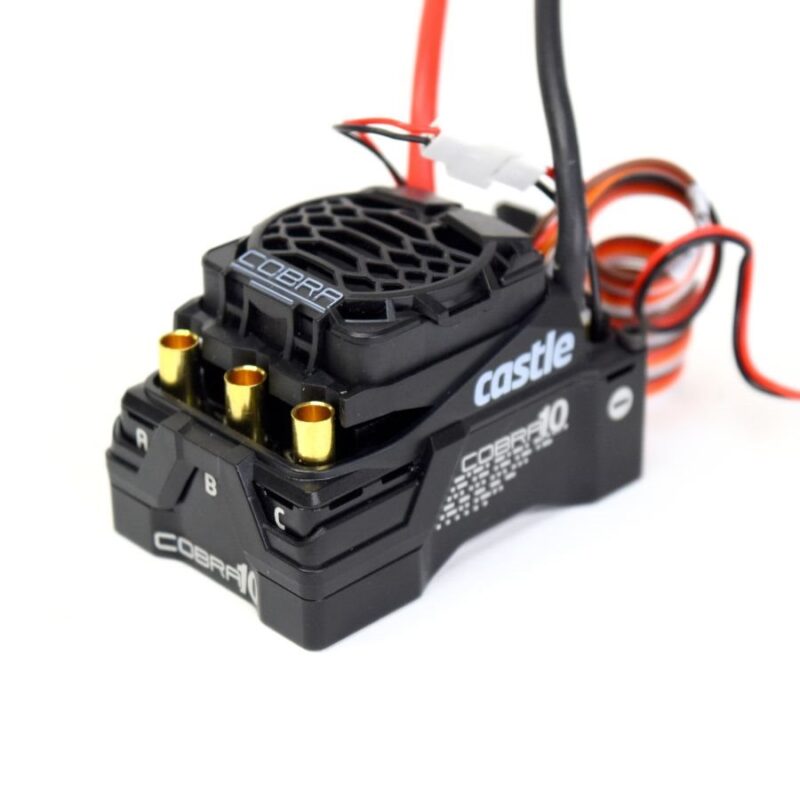

COBRA 10, 6S MAX, 25.2V MAX, 8A PEAK BEC
| Technical Specs | |
|---|---|
| Controller | |
| Input Voltage Range: | MIN: 2s LiPo, MAX: 6s LiPo (25.2 V) |
| BEC Specifications: | 5.0V – 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V |
| Operating Environment: | Waterproof* design allows for use in nearly any environment. |
| Running Modes: | SmartSense Brushless, Sensored Only, Brushed |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Yes, factory equipped (30mm),temperature controlled |
| Size: | 55.9mm x 38.3mm x 36.6 mm (2.2″ x 1.51″ x 1.44″) |
| Weight (with no battery connector): | 4.02oz (114g) |
| Battery Wire: | 12AWG |
| Connectors: | 4.0mm female bullets for motor connection, matching 4.0mm male bullets required |
| Items Needed for Operation: | A high current connector designed for high-powered electric systems, rated for 70+ amps, such as Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs soldered to the battery leads. |
| Product Use Statements: | Not intended for drag racing applications.
*Although Cobra 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
| Application Guidelines: | Cobra 10 is designed for use in 1:10 scale vehicles weighing up to 7lbs and 1:8 scale buggies geared for off road racing weighing up to 9lbs. |
| Recommended Motors: | |
| Programmability: | Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required) |
| Castle Link Mobile App (B-Link): | In development |
| Tech Tips: |
|
Additional information
| Weight | 260 g |
|---|---|
| Dimensions | 170 × 110 × 40 mm |
$204.95
